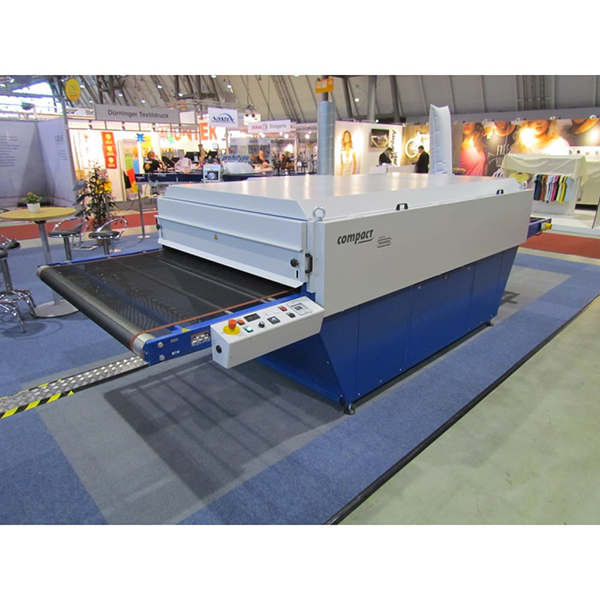

Tesoma Compact 4 Gas 70" Conveyor Dryer
$70,071.64
SKU TE-COMP4-G-18-H-SR
The Compact is ideal for medium to high-volume Screen printers and DTG/Digital Printers looking for the very best solution the industry has to offer.
IN Stock and Ready for immediate Delivery
With a production capacity of up to 1100 garments per hour, the Compact demonstrates the build quality and innovation.
- Tesoma Compacts have both electric or gas operated models
- Hot air or hot air / infrared combination
- Long heating zone
- High air volume
- Quick access to exchangeable metal filter
- Optimum drying results with adjustable temp. up to 180 °C
- Efficient heat insulation to reduce energy losses
- Minimal installation effort - quickly ready for use
- Optionally available with cooling bridge over the outlet
- Optional temperature indication on goods possible
- The average temperature on the outside surface is 25 °C at 20 °C room temperature. Maximum 50 °C. Total acoustic emission approx. 74 dB (A)
- Belt width: 1750 mm
- Heating zone: 3900 mm, hot air (operated electrically or with gas), optionally combinable with six or nine longwave infrared emitters
- Temperature: air stepless adjustable up to 180 °C (when operating with gas 100 °C to 180 °C), Infrared separately adjustable in five stages Gas burner: Natural gas or liquid gas, maximum output 55 kW
- Throughput height: 100 mm
- Transport system: teflon coated glass fibre belt, mesh size 4 mm x 4 mm
- Belt speed: stepless adjustable from 0,4 to 4 m/min
- Working height: 950 mm +/- 25 mm
- Length inlet / outlet: 59" (1500 mm) / 59" (1500 mm)
- Control: Hardware control
- Electrical connection: 400 V, 3/N/PE, 50 Hz
