Three-zone quartz flash cure with InkSense temperature control, built to work with your press.
Overview

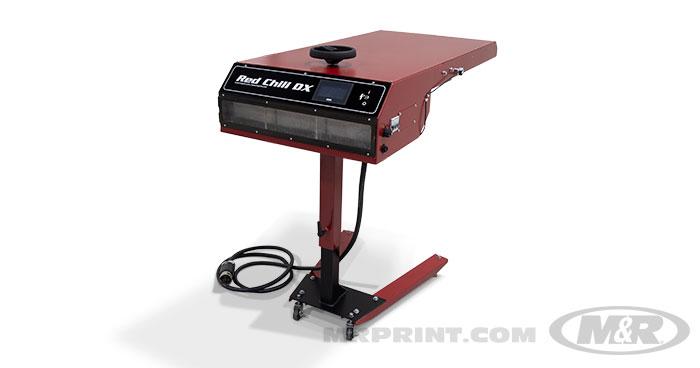

The M&R Red Chili DX 1820 is a freestanding quartz flash cure unit with an 18" x 20" curing area. Medium-wave, sealed tungsten-filament quartz lamps with adjustable intensity flash fast, and instant-on technology drops the unit to standby whenever the press is idle to save energy.
The lamps are split into three zones that run on their own or in any combination, so a small print only heats what it needs: less ambient heat, lower energy use and faster garment cooling. Flash time is set with the digital timer or by M&R's InkSense sensor, which shuts the flash off when the garment reaches the temperature you set and helps prevent over-flashing, dye migration and shrinkage on synthetics.
On newer compatible M&R presses (Challenger III, Gauntlet III and Stryker), flash duration, power level, the temperature sensor and saved recipes can be run straight from the press. A communication socket accepts an optional press cable or foot pedal, and the height-adjustable floor stand makes the flash easy to position and move.
-
Quartz Flash Lamps
Medium-wave, sealed tungsten-filament quartz lamps with adjustable intensity. -
Instant-On, Standby When Idle
Flashes on demand and reverts to standby when the press stops, saving energy. -
Three Independent Zones
Run one, two or all three zones to match the print size and cut heat and power on small prints. -
InkSense Temperature Control
Shuts off the flash when the substrate reaches the operator-set temperature to prevent over-flashing. -
Digital Timer
Set flash duration precisely when you are not flashing by temperature. -
Press Integration
Flash duration, power, sensor and recipes can be controlled from newer compatible M&R presses. -
Adjustable Pallet Sensor
Sensor switch mounts on either side of the unit and fires the flash as the pallet approaches. -
Communication Socket
Connect an optional press communication cable or an optional foot pedal. -
Height-Adjustable Floor Stand
Set the curing head height and move the flash between presses quickly.
