M&R Quick Klean Squeegee- Floodbar Cleaner w/Universal Slots 208/230v 3ph 60hz UL

M&R-QWIK-KLEAN

Configured to your shop: heads, stations, power and install. Talk to a tech who has run one.

Or call: 763-391-7390 · 817-861-3464

Ships same day from MN & TX · Free shipping on supply orders $300+

Share

Automatic squeegee and floodbar cleaning that takes your crew off the wash-up sink.

Overview

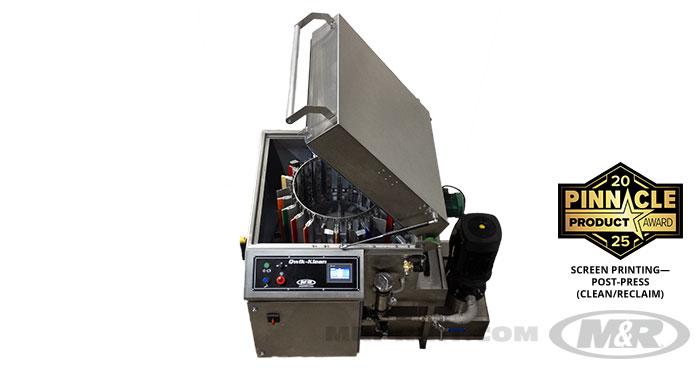

The M&R Qwik-Klean automates one of the most labor-intensive jobs in a screen printing shop: cleaning squeegees and floodbars. A high-volume spray and a rotating holder assembly work together inside a single stainless-steel chamber, then a final fresh-water rinse removes chemical residue, so there is no post-cycle washing and less chemical wear on squeegee blades.

Each cycle handles up to 24 squeegees and floodbars up to 20" long. At three cycles per hour under optimal conditions, with ink scraped off first, that averages about 72 pieces cleaned per hour. This unit is the universal-slot version.

Cleaning chemicals are recirculated, lowering chemical use and operating cost and keeping employees out of direct contact with the cleaning process. A touchscreen control panel with onboard self-diagnostics saves and recalls cleaning recipes, a foot pedal and wide-opening lid make loading easy, and an audio buzzer signals when a cycle is complete.

Features ▼
  • Single-Chamber Spray Cleaning
    High-volume spray plus a rotating squeegee/floodbar holder assembly.
  • Fresh-Water Final Rinse
    Removes chemical residue so parts are ready to use with no post-cycle wash.
  • 24 Pieces per Cycle
    Cleans up to 24 squeegees and floodbars up to 20" long, about 72 pieces per hour.
  • Universal Slots
    This version is fitted with universal-slot holders.
  • Chemical Recirculation
    Reduces chemical use, operating cost and environmental impact.
  • Safer Shop
    Keeps employees out of direct contact with cleaning chemicals.
  • Touchscreen Controls
    Controls every function, stores cleaning recipes and runs self-diagnostics.
  • Easy Loading
    Foot pedal and a wide-opening lid; audio buzzer when the cycle is done.
  • Stainless-Steel Construction
    All stainless steel for long life and minimal maintenance.
  • Compact Footprint
    Fits easily into almost any shop layout.
Specifications ▼
Model
M&R Qwik-Klean, universal slots
Capacity
24 squeegees/floodbars per cycle
Maximum Length
20" (51 cm)
Throughput
About 72 pieces per hour (3 cycles/hour, optimal conditions)
Tank Capacity
45 gal (170 L)
Electrical
208/230 V, 3 phase, 37 A, 60 Hz, 7.7/8.5 kW
Air
5 cfm @ 80 psi (142 l/min @ 5.5 bar)
Water
4.8 GPM @ 40 psi (2.75 bar)
Dimensions (L x W x H), lid closed
57.5" x 45.1" x 54" (144 x 114 x 137 cm)
Height with Lid Open
69.6" (178 cm)
Shipping Weight
1,004 lb (455 kg)
Construction
All stainless steel
Certification
UL listed and CE certified
Warranty
1-year limited warranty
Best For ▼
High-Volume Shops Labor Savings Chemical Reduction Shop Safety
