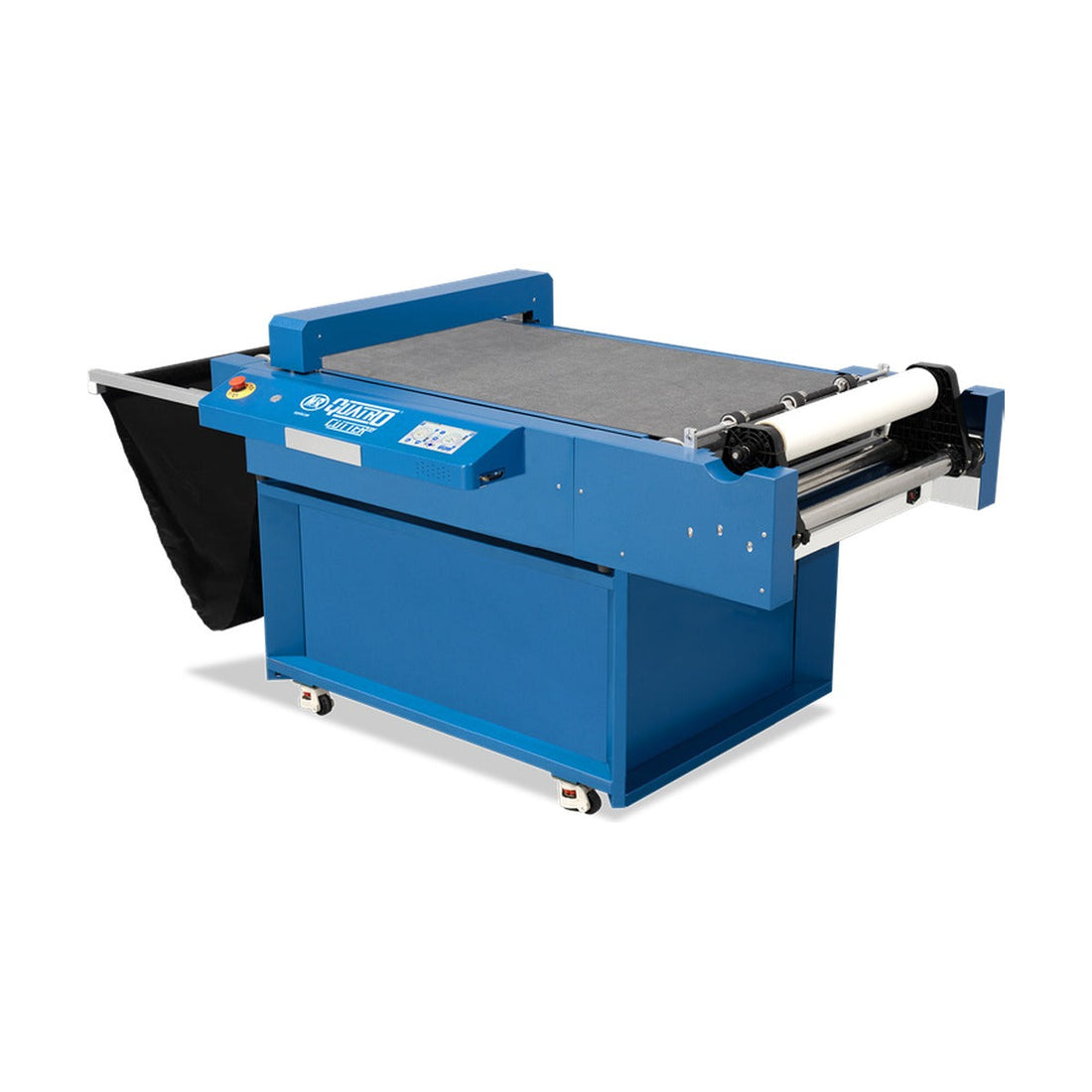

M&R Quatro Cutter XY
M&R-QUATRO-CUTTER-XY
Configured to your shop: heads, stations, power and install. Talk to a tech who has run one.
Or call: 763-391-7390 · 817-861-3464
Ships same day from MN & TX · Free shipping on supply orders $300+
Automatic X and Y-axis cutting for DTF transfer sheets, straight from your QUATRO printer.
Overview
The M&R QUATRO CUTTER XY is a DTF transfer film cutter built for the M&R QUATRO DTF Transfer Printing System. It automates cutting printed and cured PET film into individual transfers, cutting along both the X-axis and the Y-axis for one-piece-flow, just-in-time production.
A blade-on-belt system cuts at up to 27" per second over a 25" x 34" maximum cut area. Film feeds on a friction system and is held flat by vacuum suction, and a digital camera reads crop marks and QR codes so every transfer is cut where it was printed.
Cut jobs are set up on a 7" color touchscreen, with USB, LAN and Wi-Fi connectivity. The CUTTER XY runs as a standalone cutting station after printing and curing. M&R sells the CUTTER XY to shops purchasing a QUATRO DTF printer.
-
X and Y-Axis Cutting
Blade-on-belt system cuts printed, cured PET film in both directions. -
Up to 27" per Second
Cutting speed up to 68.5 cm (27") per second. -
Camera Registration
Digital camera detects crop marks and QR codes. -
Vacuum Hold-Down
Friction-fed film is held in place by vacuum suction. -
7" Color Touchscreen
Easy setup of cutting commands, with USB, LAN and Wi-Fi. -
Built for QUATRO
Requires the purchase of an M&R QUATRO DTF printer.
