The on-press control module that runs M&R's HotHead Roller and FlatIron heat modules.
Overview

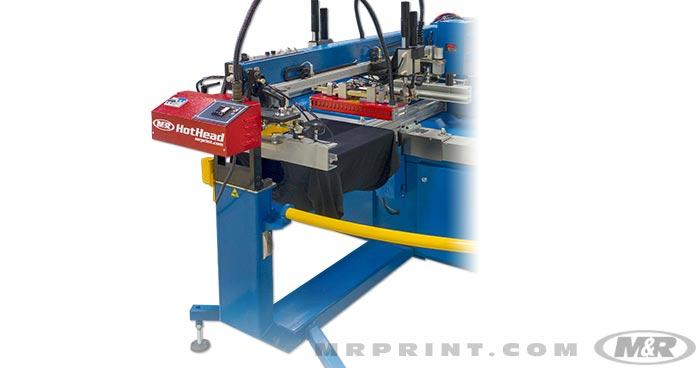

The M&R HotHead Fabric Compression System control module is the heart of the HotHead system, which gives garment decorators two ways to apply heat and pressure on press for fiber matting, ink smoothing and other specialty processes. The control module mounts on the front of a printhead arm, and its multi-function LCD display sets the temperature and heater type.
It runs both HotHead heat modules: the HotHead Roller, which applies heat and pressure with a rolling cylinder, and the HotHead FlatIron, which glides a flat, smooth heating element across the substrate. Heat modules are sold separately in 14" and 18" widths. Thermocouples and pre-programmed logic hold a constant temperature from room temperature up to 400°F.
A military-grade electrical connector, high-cycle flexible wiring and a long-life flexible sheath connect the control unit to the heat modules, and two small controllers adjust the up/down travel speed of the squeegee chopper bar.
-
Printhead-Arm Mounting
Mounts on the front of a printhead arm on the press. -
LCD Control Display
Multi-function LCD sets temperature and heater type. -
Runs Roller or FlatIron
Works with the HotHead Roller and HotHead FlatIron heat modules (sold separately). -
Constant Temperature
Thermocouples and pre-programmed logic hold temperature from ambient to 400°F. -
Travel Speed Adjustment
Two controllers set the up/down travel speed of the squeegee chopper bar. -
Built to Last
Military-grade connector, high-cycle flexible wiring and long-life sheathing.
