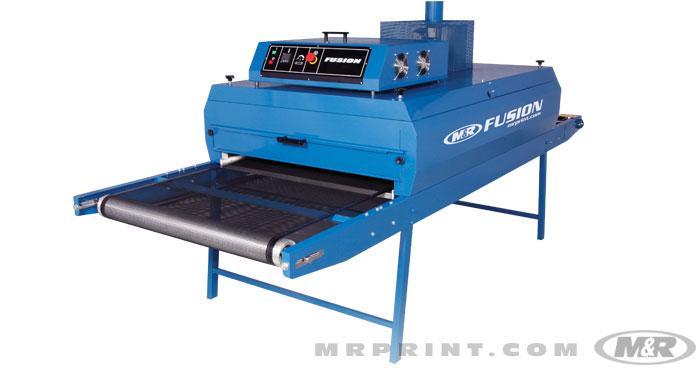

M&R Fusion 36-6-4 Electric dryer 36" Belt 30" in - 6' Heat- 24" Out
M&R-FUSION-36-6-4
Configured to your shop: heads, stations, power and install. Talk to a tech who has run one.
Or call: 763-391-7390 · 817-861-3464
Ships same day from MN & TX · Free shipping on supply orders $300+
Affordable, energy-efficient electric conveyor dryer with precise belt tracking and a cool-to-the-touch cabinet.
Overview
The M&R Fusion 36-6-4 is an infrared electric screen printing conveyor dryer with a 36" belt, a 6' (72") heat chamber and four height-adjustable radiant panels, plus a 30" infeed and 24" outfeed. M&R rates the Fusion as the most energy-efficient and highest-capacity electric conveyor dryer in its class.
A digital control panel sets and displays temperature and belt speed. PID temperature control powers the dryer up gradually to avoid peak amperage at warm-up, phases heat on and off during production and holds the chamber within 1° of target at the thermocouple. Heavy-duty insulation and CoolSkin technology keep heat in the chamber and the cabinet cool to the touch, and an automatic shutdown sequence keeps the blower and belt running until the chamber has cooled.
A heavy-duty, variable-speed DC motor drives M&R's Teflon-coated fiberglass Patriot Belt. A red silicone guide stitched along one edge rides in grooves machined into the anodized aluminum SureTrak rollers, keeping the belt tracking straight. With its legs folded, Fusion fits on its side through a 31" doorway. It is a strong production dryer for a manual or small automatic press, or a sampling dryer for a midsize shop.
-
Infrared Radiant Panels
Four height-adjustable, energy-efficient radiant panels in a 6' heat chamber. -
Digital Controls
Set and monitor process temperature, set temperature and belt speed from a digital keypad. -
PID Temperature Control
Gradual warm-up avoids peak amperage and holds the chamber within 1° of target. -
CoolSkin Technology
Heavy-duty insulation keeps heat in the dryer and the cabinet cool to the touch. -
Patriot Belt with SureTrak Rollers
Teflon-coated fiberglass belt with a stitched guide that rides in machined rollers for precise tracking. -
Variable-Speed DC Drive
Reliable, heavy-duty DC motor for consistent belt speed. -
Adjustable Air Handling
Adjustable air displacement and evacuation, with adjustable infeed and outfeed openings. -
Automatic Shutdown Sequence
Blower and belt keep running until the heat chamber has cooled. -
Low-Profile, Easy to Move In
Easy to see over, air-cooled electrical cabinet, and fits through a 31" doorway on its side. -
Warranty & Support
Two-year limited warranty and M&R's 24-hour / 365-day support hotline.
