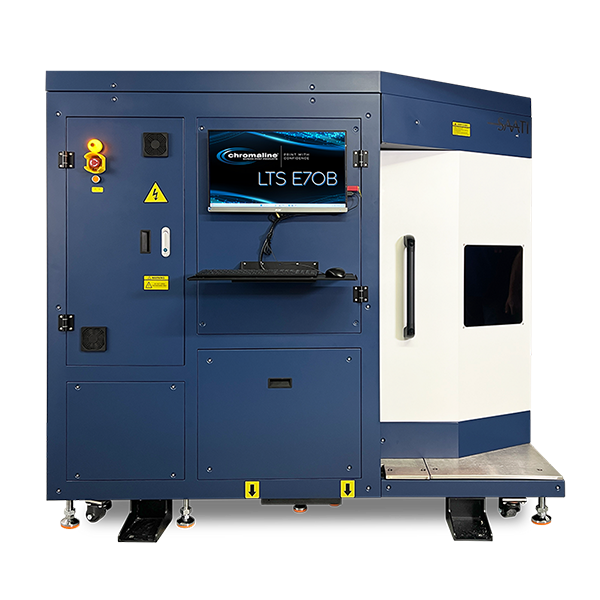

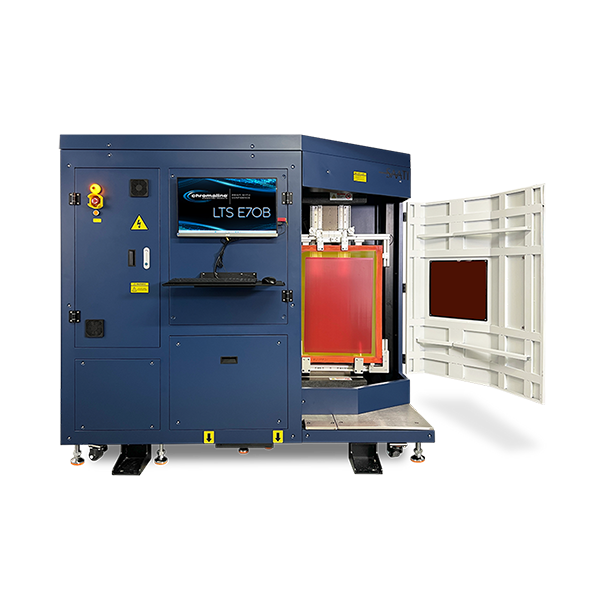

Chromaline LTS E70B Laser to Screen Unit
Laser To Screen exposure system
The LTS E70B is a compact, economical laser-to-screen auto exposure unit built for small to medium shops that want consistent, high-quality results. The E70B images one screen at a time and removes film, ink, and glass from the workflow so you can move from file to press with speed and repeatability.
CHARACTERISTICS

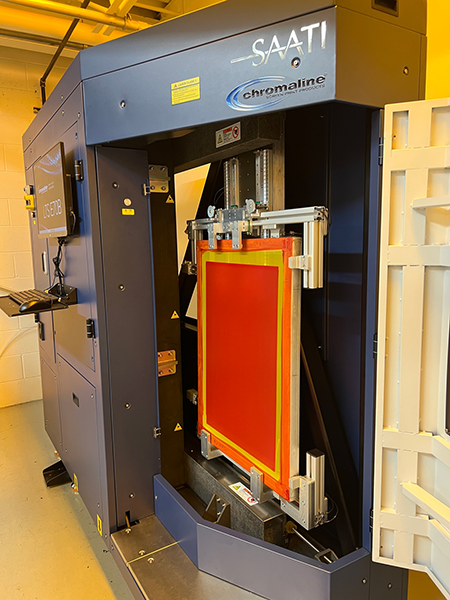

• Vertical design with safe-viewing window
• Planar array of 64 lasers with switchable resolution: 1270 and 2540 DPI
• Compatible with all emulsions and stencil films
• User-friendly software, compatible with most RIP programs
• Operates using 1-bit TIFF file format
FEATURES/BENEFITS
• Ultra-high-resolution CtS exposure, capable of reproducing even the most demanding image types

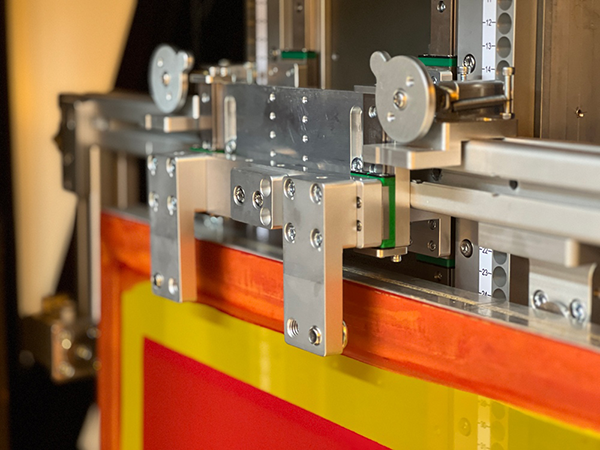

• Pneumatic frame clamping system supports custom and major registration systems (e.g., MHM, Tri-Lock)
• Upgraded encoder, drive, and mechanical systems ensure precise pixel placement and HD image quality
• Directly processes digital files to screen - eliminating the need for film positives, ink, or wax
• Low power consumption for reduced operating costs
• Laser life of over 10,000 hours, with easy and low-cost maintenance
SPECIFICATIONS
• Maximum Image Size: 23” x 31” (600 x 800 mm)
• Maximum Frame Size: 25“ x 36” (640 x 920 mm)
• Machine Dimensions: 81.5“ x 28” x 74” (2070 x 712 x 1880 mm) - allow an additional 24” (610 mm) on the right side and 8” (203.2 mm) in front for screen chamber door clearance
• Weight: 1764 lbs (800 kg)
• Electrical: Compatible with 110V input
• Air Requirements: Compressed air for clamps at 90 psi (6.2 bar); requires less than 1 CFM
• Warranty: One-year limited warranty
